Draw-Tite Trailer Hitch Ball, 1-7/8 Inch (63814)

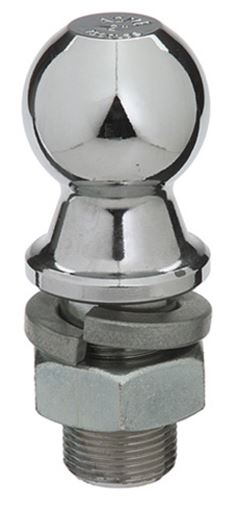

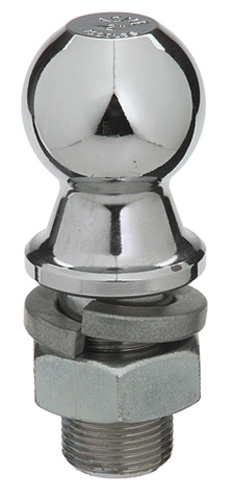

This Draw-Tite trailer hitch ball is a Hitch Class I ball with a 1-7/8 in. ball diameter and a 3/4 in. diameter shank. It is made of heat-hardened steel with a chrome finish and includes a lock washer and hex nut.
Key Features
- 1-7/8 in. ball diameter
- Hitch Class I, 2,000 lbs capacity with a gross tongue weight of 200 lbs
- Steel construction with a chrome finish
- Heat hardened
- 3/4 in. shank diameter and 3-3/8 in. shank length
- Lock washer and hex nut included
Specifications
| Specification | Value |
| Brand | Draw-Tite |
| Manufacturer Part Number | 63814 |
| Ball Diameter | 1-7/8 in. |
| Shank Diameter | 3/4 in. |
| Shank Length | 3-3/8 in. |
| Capacity | 2,000 lbs |
| Gross Tongue Weight | 200 lbs |
| Hitch Class | Class I |
| Material | Steel |
| Finish | Chrome |
| Heat Hardened | Yes |
| Drawbar Thickness Range | 0.375 in. to 2.125 in. |
| Hardware Included | Lock washer and hex nut (hex nut 1.125 in.) |
| Installation Torque | 160 ft-lbs |
| Weight | 1.75 lbs |
Frequently Asked Questions
What is the ball diameter and shank size?
The ball diameter is 1-7/8 in. The shank is 3/4 in. in diameter and 3-3/8 in. long.
What are the capacity and hitch class?
This is a Hitch Class I ball with a 2,000 lbs capacity and a gross tongue weight of 200 lbs.
What hardware is included?
A lock washer and a hex nut are included. The hex nut size is 1.125 in.
What torque and drawbar thickness apply?
Torque the nut to 160 ft-lbs. The drawbar thickness range is 0.375 in. to 2.125 in.
Draw-Tite manufactures towing and trailering products, including trailer hitches, hitch balls, ball mounts, and towing accessories.
