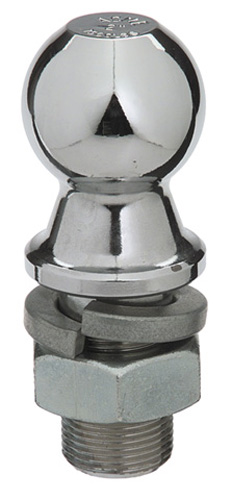

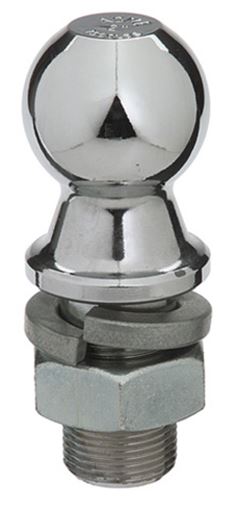

    Draw-Tite Trailer Hitch Ball, 1-7/8 Inch

    Manufacturers: Cequent , Draw-Tite
    Draw-Tite Class I trailer hitch ball with a 1-7/8 in. ball diameter and a 2,000 lbs capacity. Heat-hardened steel with a chrome finish; lock washer and hex nut included.
    SKU: DT5032
    Manufacturer part number: 63816
    GTIN: 016118054958
    Availability: In stock
    $20.99
    $13.86
    i h

    Draw-Tite Trailer Hitch Ball, 1-7/8 Inch

    This Draw-Tite Class I trailer hitch ball has a 1-7/8 in. ball diameter and a 1 in. shank diameter. It is made of heat-hardened steel with a chrome finish and is rated for a 2,000 lbs capacity.

    Key Features

    • 1-7/8 in. ball diameter
    • Class I, 2,000 lbs capacity with a 200 lbs gross tongue weight
    • Steel construction with a chrome finish
    • Heat hardened
    • 1 in. shank diameter with a 2-1/8 in. shank length
    • Lock washer and hex nut included

    Specifications

    BrandDraw-Tite
    Part Number63816
    Ball Diameter1-7/8 in.
    Shank Diameter1 in.
    Shank Length2-1/8 in.
    Capacity2,000 lbs
    Gross Tongue Weight200 lbs
    ClassClass I
    MaterialSteel
    FinishChrome
    TreatmentHeat hardened
    Drawbar Thickness0.375 in. to 0.75 in.
    Hardware IncludedLock washer and hex nut (hex nut 1.5 in.)
    Torque250 ft-lbs
    Weight2.25 lbs

    Frequently Asked Questions

    What are the ball and shank sizes?

    The ball diameter is 1-7/8 in. The shank is 1 in. in diameter and 2-1/8 in. long.

    What hardware is included?

    A lock washer and a hex nut are included. The hex nut is 1.5 in.

    What is the capacity and class?

    This is a Class I hitch ball with a 2,000 lbs capacity and a gross tongue weight of 200 lbs.

    What torque is specified?

    The specified torque is 250 ft-lbs.

    Draw-Tite manufactures towing and trailering products, including trailer hitches, hitch balls, ball mounts, and towing accessories.

    Draw-Tite Trailer Hitch Ball, 1-7/8 Inch

    This Draw-Tite Class I trailer hitch ball has a 1-7/8 in. ball diameter and a 1 in. shank diameter. It is made of heat-hardened steel with a chrome finish and is rated for a 2,000 lbs capacity.

    Key Features

    • 1-7/8 in. ball diameter
    • Class I, 2,000 lbs capacity with a 200 lbs gross tongue weight
    • Steel construction with a chrome finish
    • Heat hardened
    • 1 in. shank diameter with a 2-1/8 in. shank length
    • Lock washer and hex nut included

    Specifications

    BrandDraw-Tite
    Part Number63816
    Ball Diameter1-7/8 in.
    Shank Diameter1 in.
    Shank Length2-1/8 in.
    Capacity2,000 lbs
    Gross Tongue Weight200 lbs
    ClassClass I
    MaterialSteel
    FinishChrome
    TreatmentHeat hardened
    Drawbar Thickness0.375 in. to 0.75 in.
    Hardware IncludedLock washer and hex nut (hex nut 1.5 in.)
    Torque250 ft-lbs
    Weight2.25 lbs

    Frequently Asked Questions

    What are the ball and shank sizes?

    The ball diameter is 1-7/8 in. The shank is 1 in. in diameter and 2-1/8 in. long.

    What hardware is included?

    A lock washer and a hex nut are included. The hex nut is 1.5 in.

    What is the capacity and class?

    This is a Class I hitch ball with a 2,000 lbs capacity and a gross tongue weight of 200 lbs.

    What torque is specified?

    The specified torque is 250 ft-lbs.

    Draw-Tite manufactures towing and trailering products, including trailer hitches, hitch balls, ball mounts, and towing accessories.

    Products specifications
    Ball Diameter 1-7/8"
    Shank Diameter 1"
    Shank Length 2-1/8"
    Finish Chrome
