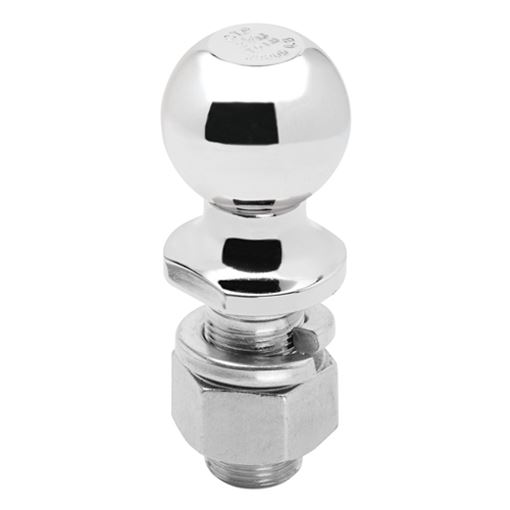

    Draw-Tite Trailer Hitch Ball, 2-5/16 Inch, 20,000 lbs

    Manufacturers: Cequent , Draw-Tite
    This Draw-Tite Class IV trailer hitch ball has a 2-5/16 in. ball diameter and a 20,000 lbs capacity. It is made of heat-hardened steel with a chrome finish.
    SKU: 444144
    Manufacturer part number: 63840
    GTIN: 016118073188
    Availability: Out of stock
    $49.49
    $32.99
    i h

    Draw-Tite Trailer Hitch Ball, 2-5/16 Inch, 20,000 lbs

    This Draw-Tite Class IV trailer hitch ball features a 2-5/16 in. ball diameter and a 20,000 lbs capacity. It is made of heat-hardened steel with a chrome finish and comes with a lock washer and hex nut.

    Key Features

    • 2-5/16 in. ball diameter
    • 20,000 lbs capacity, with a gross tongue weight of 2,000 lbs
    • Class IV rating
    • Steel construction with a chrome finish
    • Heat hardened
    • 1-1/4 in. diameter shank, 2-3/4 in. shank length
    • Designed for drawbar thicknesses from 0.375 in. to 1 in.
    • Lock washer and hex nut included

    Specifications

    BrandDraw-Tite
    Manufacturer Part Number63840
    ClassIV
    Ball Diameter2-5/16 in.
    Capacity20,000 lbs
    Gross Tongue Weight2,000 lbs
    Shank Diameter1-1/4 in.
    Shank Length2-3/4 in.
    Drawbar Thickness0.375 in. to 1 in.
    MaterialSteel
    FinishChrome
    Heat HardenedYes
    Hardware IncludedLock washer and hex nut (1.5 in.)
    Installation Torque450 ft-lbs
    Weight4.05 lbs

    Frequently Asked Questions

    What size is the ball and what is its capacity?

    The ball diameter is 2-5/16 in. The capacity is 20,000 lbs, with a gross tongue weight of 2,000 lbs. It is rated Class IV.

    What drawbar thickness does it work with?

    It is designed for drawbar thicknesses from 0.375 in. to 1 in.

    What hardware is included?

    A lock washer and a hex nut are included. The hex nut measures 1.5 in.

    What torque should be used when installing it?

    Torque the hex nut to 450 ft-lbs.

    Draw-Tite manufactures towing and trailering products, including trailer hitches, hitch balls, ball mounts, and towing accessories.
